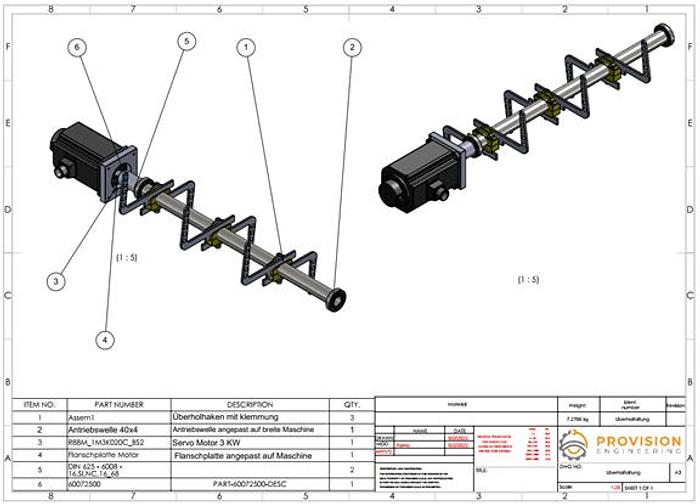

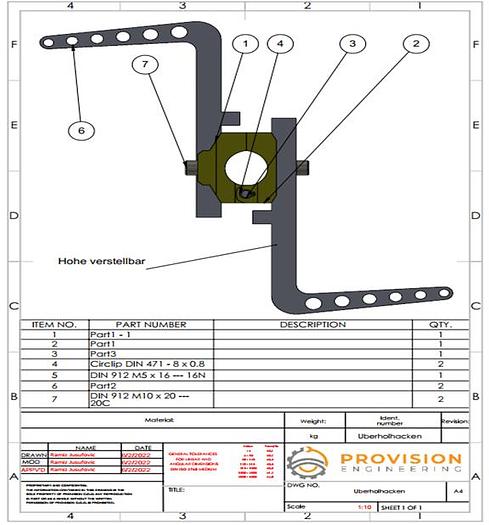

Device for 4/6 corners

Control unit for the rear folding system including 2 shafts and 2 servo motors and compatible hooks Connection to the Security System Counting unit for production speed, average and total Touch panel for data input and data output •           Simplified operator interface •           speed 150 m/min or 20,000 pieces/hour •           English and Italian language on the display •           180 degrees of hook movement Components list: 2 Omron servo motors (3 KW) 2 Servo Drives 1 Touch Terminal (7 inches) 1 unit 16 pin digital inputs 1 unit 16 pin digital outputs 2 cables of 5 meters each 1 electric cabinet 1 Encoder 2 light bars for safety
